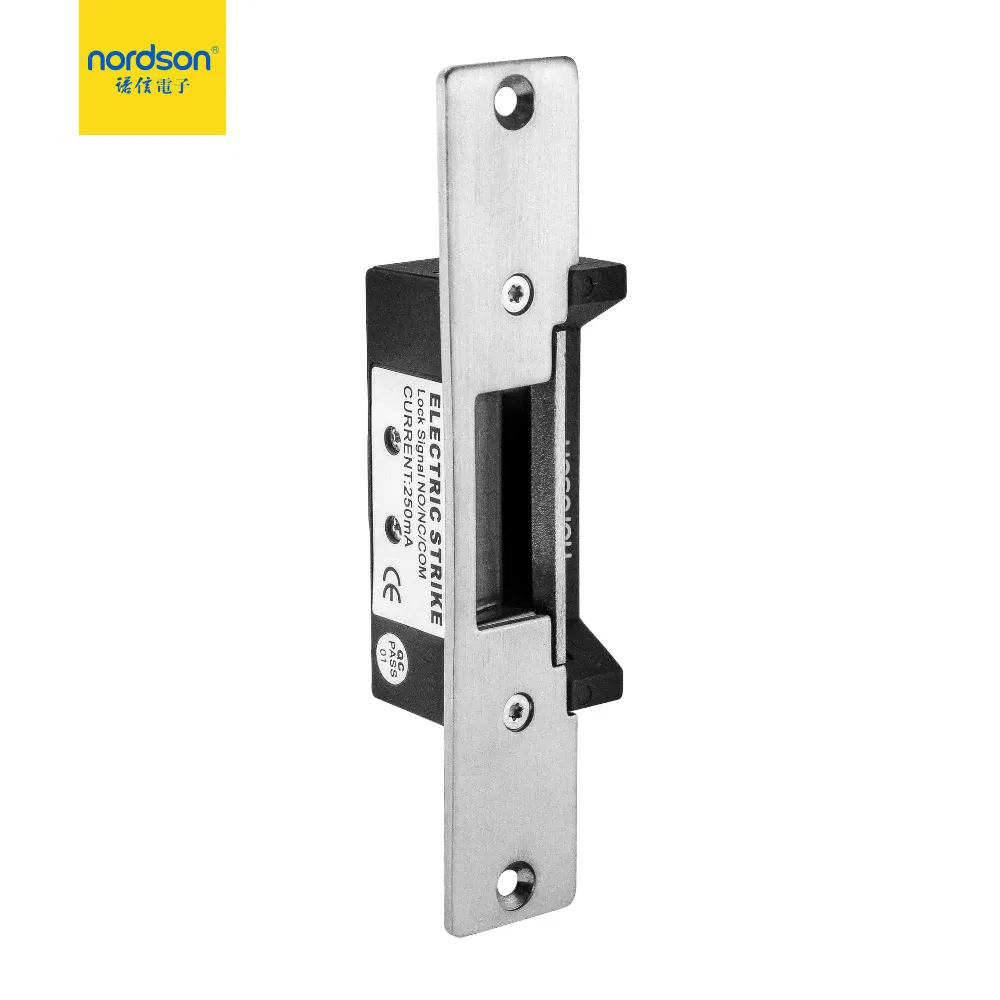

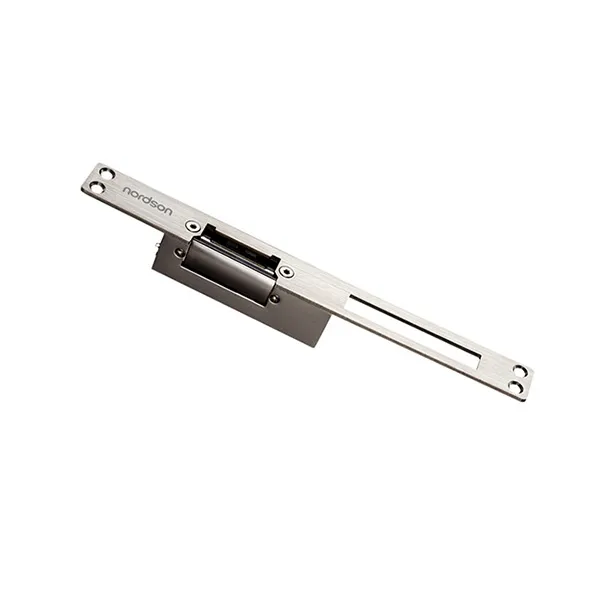

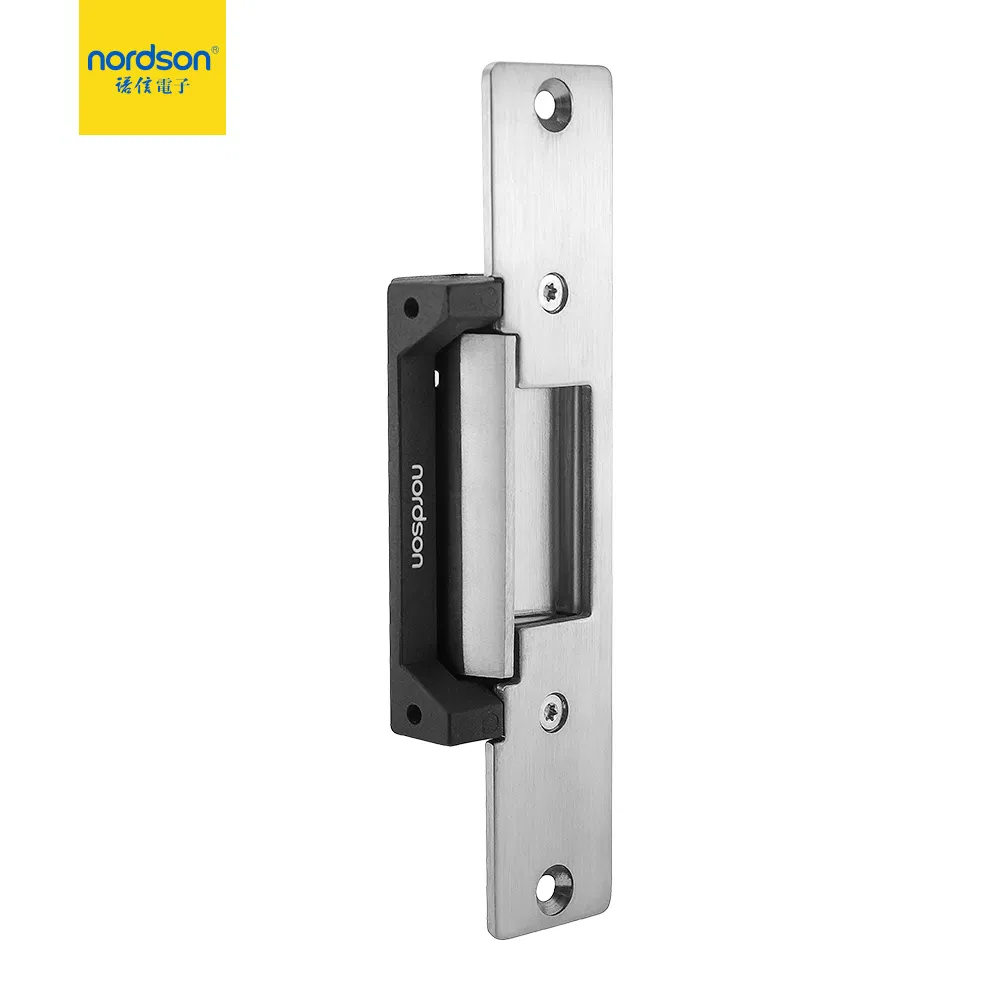

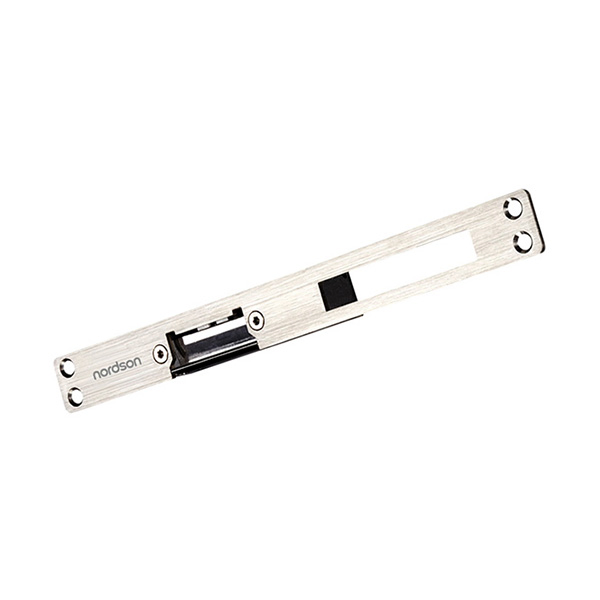

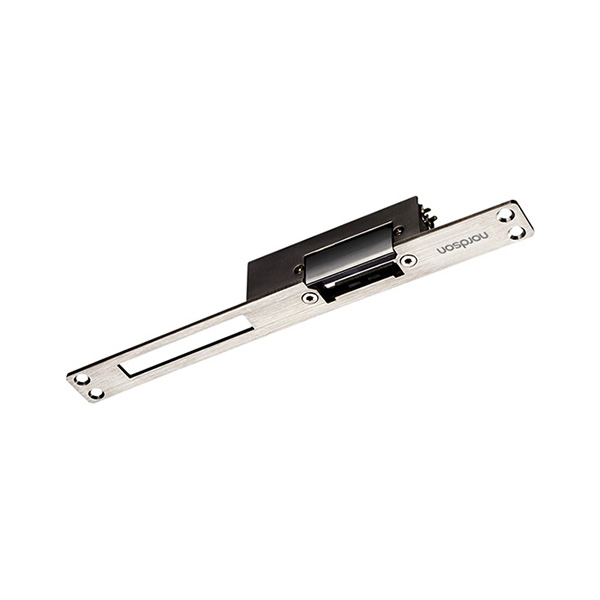

Fail-Locked Long Type Wide Mouth Electric Door Strike 12V

Customization:	Available
After-sales Service:	Nordson
Warranty:	3 Years

Overview

The NJ-350A-L is a wide-mouth-type long electronic strike lock. It works with magnetic force generated by an electromagnetic field for locking and unlocking, featuring specialized short circuit protection. This model offers two working modes: Power-to-open and Power-to-lock. Constructed from high-quality aluminum, it ensures high hardness, corrosion resistance, and anti-deformation properties. It is suitable for various door types including wooden, metal, and PVC doors.

Basic Specifications

Model NO.

NJ-350A-L

Certification

RoHS, CCC

Shear Strength

500kg

Operating Voltage

DC 12V

Standby Current

200mA

Material

High Aluminum

Dimensions

240L x 28W x 31H (mm)

Surface Temp

Low Temperature

Product Features

Passed 1200lbs super linear static thrust test.
Multiple mode options: Fail-unlocked or Fail-locked.
Designed for standard-type doors with adjustable tongue distance.
Supports direct installation on metal door frames with mounting holes.
Passed high temperature aging test 100,000 times.
High-quality aluminum build for superior hardness and corrosion resistance.
CE and MA Certificate approved for quality assurance.

Technical Parameters

Version	NJ-350A-L: Fail-locked \| NJ-350B-L: Fail-unlocked
Working Principle	Electronically Controlled Lock
Application	Public Passage, Enterprise, Supermarket, Campus, Hospital, Hotel
Suitable Doors	Wooden, Aluminum, Glass, Fireproof & Metal Doors
Ambient Temp	-10°C to +55°C
Optional Functions	Lock Status Sensors / DC24V
Weight	0.5kg
Package Size	28.00cm * 36.00cm * 24.00cm
